BRIO QUICK RUN 120 QR120S-CF/1 SURFACE MOUNT DOOR TRACK

Widely used in internal residential and commercial applications.
To accommodate different building designs, panels can slide to one or both sides.
For ease of operation it is recommended that the panel width should not exceed 75% of panel height.
Timber panels for interior use can be of flush construction or glazed.
Timber panels for industrial applications should be framed, ledged and braced. Metal panels should be constructed of box section, channel or angle framing, well braced and clad with flat or corrugated sheets.
Standard Sets and Packs
Sets comprise of top track, hangers, doors stops, nylon guides, timber
screws and instructions.

Maximum Panel Height - 3000mm
Maximum Panel Weight - 120kg
Minimum Panel Thickness - 32mm
Maximum Panel Width - 950mm

Click To View Video Brio Quick Run 120 Surface Mount

ITEM NUMBERINCLUDED IN KITSET
BIQR120R-C20F/1Quick Run 120F 2m kit set with surface mount door hangers and clip stops
Comprises 2m 120F track, two recessed mount door hangers, two clip stops, one saw cut guide
BIQR120R-C30F/1Quick Run 120F 3m kit set with surface mount door hangers and clip stops
Comprises 3m 120F track, two recessed mount door hangers, two clip stops, one saw cut guide
BIQR120R-S20F/1Quick Run 120F 2m kit set with surface mount door hangers and soft close
Comprises 2m 120F track, two surface mount door hangers, two soft close units, one saw cut guide
BIQR120R-S30F/1Quick Run 120F 3m kit set with surface mount door hangers and soft close
Comprises 3m 120F track, two surface mount door hangers, two soft close units, one saw cut guide
Code Supplier Part Number Image Name Unit Overall Length Price Quantity

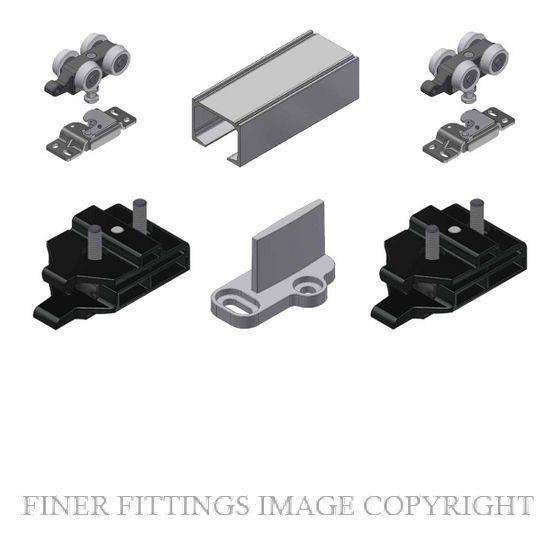

BIQR120S C20F 1 QR120S-C20F/1 BRIO QR120S-C20F/1 QUICK RUN 120 SURFACE MOUNT KIT 2MTR CLIP STOP
  • Unit:
    Set
  • Overall Length:
    2000mm
Set 2000mm
$259.00 (inc GST)
BIQR120S C30F 1 QR120S-C30F/1 BRIO QR120S-C30F/1 QUICK RUN 120 SURFACE MOUNT KIT 3MTR CLIP STOP
  • Unit:
    Set
  • Overall Length:
    3000mm
Set 3000mm
$291.74 (inc GST)

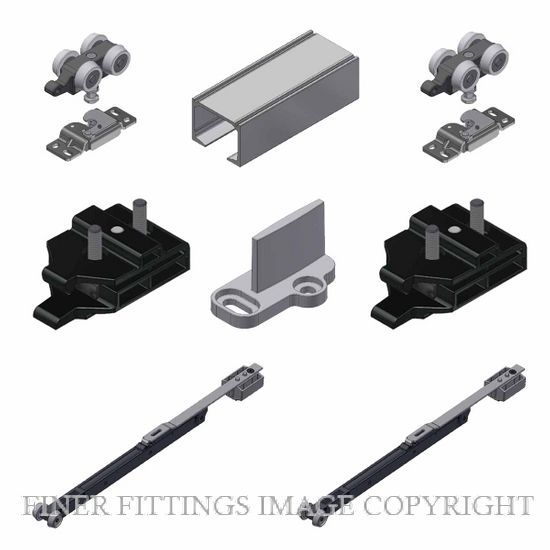

BIQR120S S20F 1 QR120S-S20F/1 BRIO QR120S-S20F/1 QUICK RUN 120 SURFACE MOUNT KIT 2MTR SOFT CLOSE
  • Unit:
    Set
  • Overall Length:
    2000mm
Set 2000mm
$437.77 (inc GST)
BIQR120S S30F 1 QR120S-S30F/1 BRIO QR120S-S30F/1 QUICK RUN 120 SURFACE MOUNT KIT 2MTR SOFT CLOSE
  • Unit:
    Set
  • Overall Length:
    3000mm
Set 3000mm
$470.53 (inc GST)
