CL406 DOUBLE DOOR PASSAGE SET NON MAGNETIC 46-52MM

Supplied With Timber Fixings

FUNCTION

PASSAGE DOUBLE DOORS NON-LATCHING (NON MAGNETIC DOOR HOLDING)

PRODUCT DESCRIPTION

The new CL406 ADA Magnetic matches the look and functionality of the existing CL400 Magnetic range of pocket door hardware, with added disabled access functionality.
Utilising the patented magnetic mechanism of the CL400 Magnetic, this new addition to the range provides flexibility for building owners. The CL406 ADA uses the same door cutout and striker and is able to be retrofitted over existing CL400 flush handles for the requirements of disabled tenants.

PRODUCT FEATURES

Easy to use - offset handle requires no tight pinching or twisting of the wrist.
Privacy, Passage and Bi-Parting options available.
Privacy option supplied with red/green engaged/vacant indication as standard.
Striker sits flush with closing jamb.
Matches other hardware in the CL400 range. No on site alteration of handle is required
High quality engineered components
Suitable for cavity or surface sliding doors

Minimum Door Opening - 950mm

Minimum Clear Walk Through Width To Comply With Australian Accessible Code - 850mm

Miniumum Distance Door Needs To Protrude From Opening - 100mm

Door Thickness - 46-52mm

NON HANDED

Available Finishes - Matt Chrome - Chrome Plate - Oil Rubbed Bronze - Satin Chrome - Satin Nickel

Downloadable Files

Downloads

Code	Supplier Part Number	Name	Unit	Application	Function	Product Features	Finish	Product Options	Door Thickness	Price	Quantity

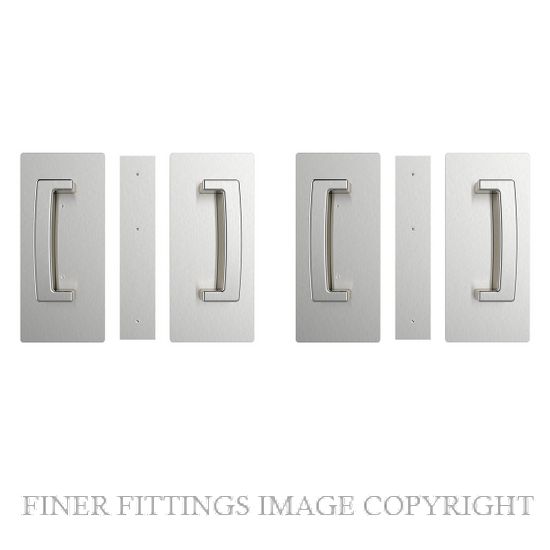

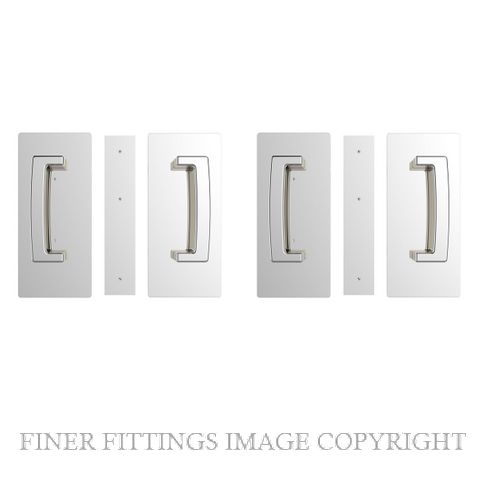

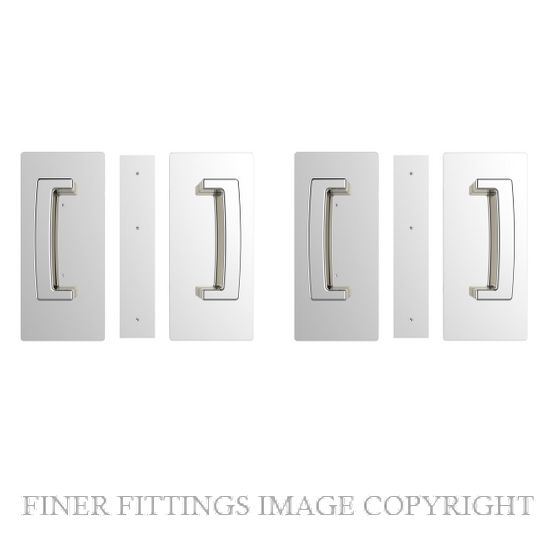

CL406D0027	CL406D0027	CL406D0027 CL406 ADA PASSAGE HANDLE 46-52MM DOORS CHROME PLATE Unit: Each Application: Passage Set Function: Double Doors Product Features: Non Magnetic Door Holding Finish: Chrome Plate Product Options: Passage Non Latching Door Thickness: 46mm-52mm	Each	Passage Set	Double Doors	Non Magnetic Door Holding	Chrome Plate	Passage Non Latching	46mm-52mm	Retail: $1,213.17 (inc GST) Special: $1,031.18 (inc GST)	Quantity:
CL406D0127	CL406D0127	CL406D0127 CL406 ADA PASSAGE HANDLE 46-52MM DOORS SATIN CHROME Unit: Each Application: Passage Set Function: Double Doors Product Features: Non Magnetic Door Holding Finish: Satin Chrome Product Options: Passage Non Latching Door Thickness: 46mm-52mm	Each	Passage Set	Double Doors	Non Magnetic Door Holding	Satin Chrome	Passage Non Latching	46mm-52mm	Retail: $1,005.13 (inc GST) Special: $854.36 (inc GST)	Quantity:

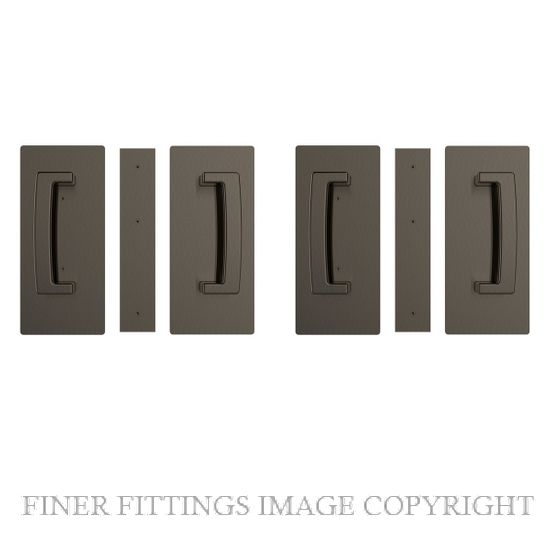

CL406D0227	CL406D0227	CL406D0227 CL406 ADA PASSAGE HANDLE 46-52MM DOORS OIL RUBBED BRZ Unit: Each Application: Passage Set Function: Double Doors Product Features: Non Magnetic Door Holding Finish: Oil Rubbed Bronze Product Options: Passage Non Latching Door Thickness: 46mm-52mm	Each	Passage Set	Double Doors	Non Magnetic Door Holding	Oil Rubbed Bronze	Passage Non Latching	46mm-52mm	Retail: $1,082.27 (inc GST) Special: $919.92 (inc GST)	Quantity:

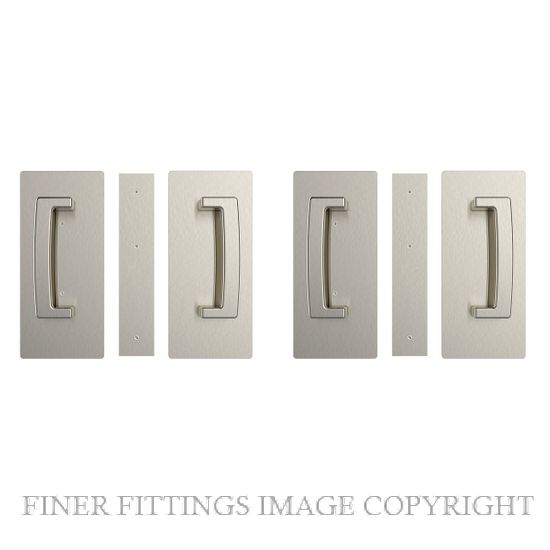

CL406D0327	CL406D0327	CL406D0327 CL406 ADA PASSAGE HANDLE 46-52MM DOORS SATIN NICKEL Unit: Each Application: Passage Set Function: Double Doors Product Features: Non Magnetic Door Holding Finish: Satin Nickel Product Options: Passage Non Latching Door Thickness: 46mm-52mm	Each	Passage Set	Double Doors	Non Magnetic Door Holding	Satin Nickel	Passage Non Latching	46mm-52mm	Retail: $998.12 (inc GST) Special: $848.40 (inc GST)	Quantity:
