CL406 SINGLE DOOR PRIVACY SET MAGNETIC 34-40MM

Supplied With Timber Fixings

FUNCTION

PRIVACY-LATCHING (MAGNETIC DOOR HOLDING)

SNIB BOTH SIDES

PRODUCT DESCRIPTION

The new CL406 ADA Magnetic matches the look and functionality of the existing CL400 Magnetic range of pocket door hardware, with added disabled access functionality.
Utilising the patented magnetic mechanism of the CL400 Magnetic, this new addition to the range provides flexibility for building owners. The CL406 ADA uses the same door cutout and striker and is able to be retrofitted over existing CL400 flush handles for the requirements of disabled tenants.

PRODUCT FEATURES

Easy to use - offset handle requires no tight pinching or twisting of the wrist.
Privacy, Passage and Bi-Parting options available.
Privacy option supplied with red/green engaged/vacant indication as standard.
Striker sits flush with closing jamb.
Matches other hardware in the CL400 range. No on site alteration of handle is required
High quality engineered components
Suitable for cavity or surface sliding doors

Minimum Door Opening - 950mm

Minimum Clear Walk Through Width To Comply With Australian Accessible Code - 850mm

Miniumum Distance Door Needs To Protrude From Opening - 100mm

Door Thickness - 34-40mm

NON HANDED

Available Finishes - Matt Chrome - Chrome Plate - Oil Rubbed Bronze - Satin Chrome - Satin Nickel

Downloadable Files

Downloads

Code	Supplier Part Number	Name	Unit	Application	Function	Product Features	Finish	Product Options	Door Thickness	Price	Quantity

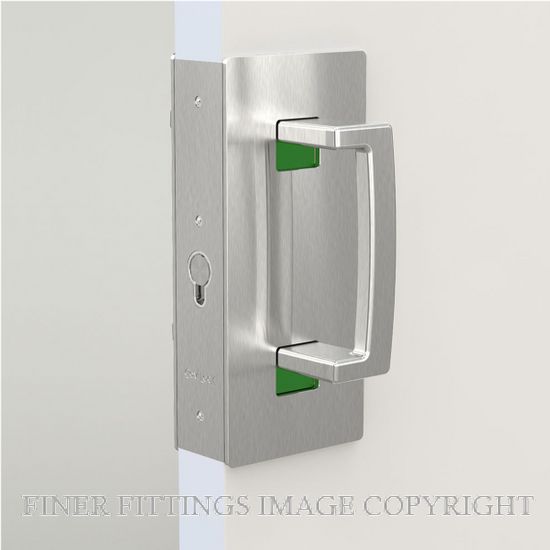

CL406B0025	CL406B0025	CL406B0025 CL406 ADA PRIVACY HANDLE 33-40MM DOORS CHROME PLATE Unit: Each Application: Privacy Set Function: Single Doors Product Features: Magnetic Door Holding Finish: Chrome Plate Product Options: Snib Both Sides Door Thickness: 34mm-40mm	Each	Privacy Set	Single Doors	Magnetic Door Holding	Chrome Plate	Snib Both Sides	34mm-40mm	Retail: $839.17 (inc GST) Special: $713.28 (inc GST)	Quantity:

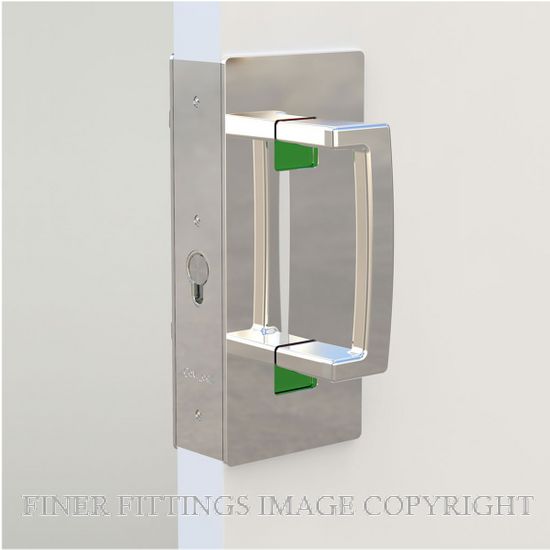

CL406B0125	CL406B0125	CL406B0125 CL406 ADA PRIVACY HANDLE 33-40MM DOORS SATIN CHROME Unit: Each Application: Privacy Set Function: Single Doors Product Features: Magnetic Door Holding Finish: Satin Chrome Product Options: Snib Both Sides Door Thickness: 34mm-40mm	Each	Privacy Set	Single Doors	Magnetic Door Holding	Satin Chrome	Snib Both Sides	34mm-40mm	Retail: $698.92 (inc GST) Special: $594.08 (inc GST)	Quantity:

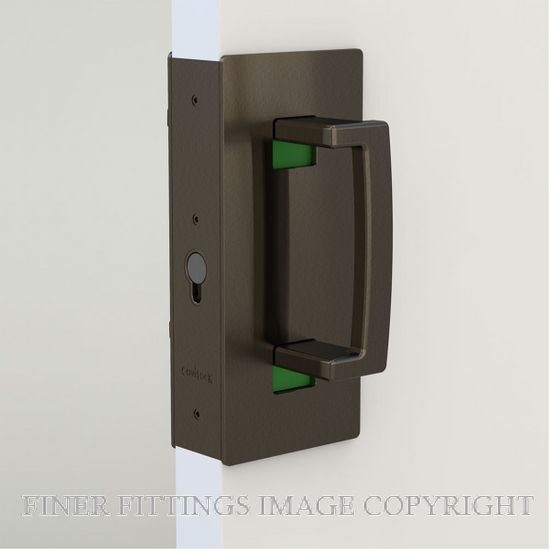

CL406B0225	CL406B0225	CL406B0225 CL406 ADA PRIVACY HANDLE 33-40MM DOORS OIL RUBBED BRZ Unit: Each Application: Privacy Set Function: Single Doors Product Features: Magnetic Door Holding Finish: Oil Rubbed Bronze Product Options: Snib Both Sides Door Thickness: 34mm-40mm	Each	Privacy Set	Single Doors	Magnetic Door Holding	Oil Rubbed Bronze	Snib Both Sides	34mm-40mm	Retail: $750.34 (inc GST) Special: $637.79 (inc GST)	Quantity:

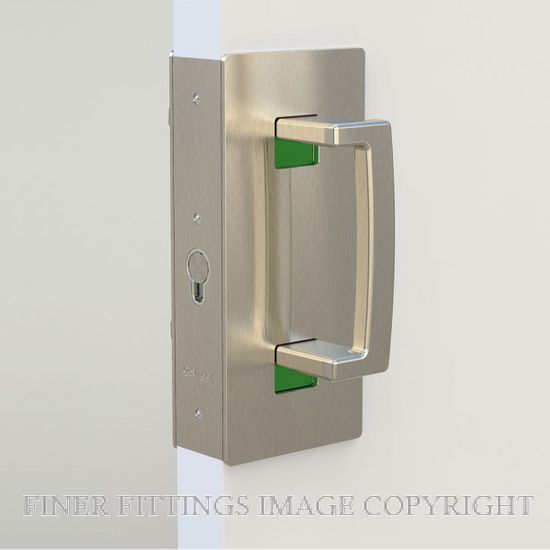

CL406B0325	CL406B0325	CL406B0325 CL406 ADA PRIVACY HANDLE 33-40MM DOORS SATIN NICKEL Unit: Each Application: Privacy Set Function: Single Doors Product Features: Magnetic Door Holding Finish: Satin Nickel Product Options: Snib Both Sides Door Thickness: 34mm-40mm	Each	Privacy Set	Single Doors	Magnetic Door Holding	Satin Nickel	Snib Both Sides	34mm-40mm	Retail: $694.24 (inc GST) Special: $590.11 (inc GST)	Quantity:
