BRIO SHUTTERFOLD TRACK PACKSETS

Supplied With Timber Fixings

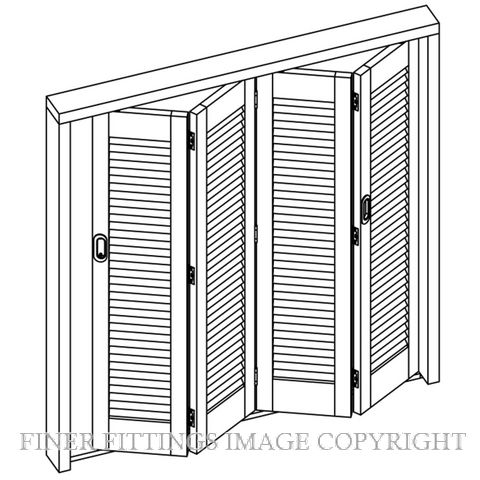

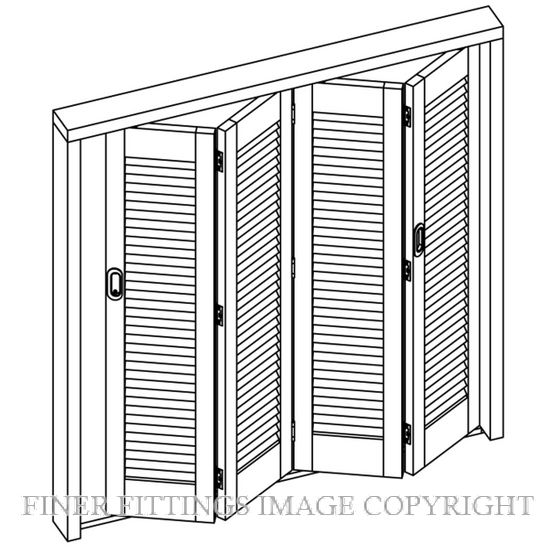

BRIO SHUTTERFOLD 25KG FOLDING SHUTTERS

Suitable for residential and light commercial folding shutters, with all panels of equal width.
Panels can fold to one or both sides of the opening.

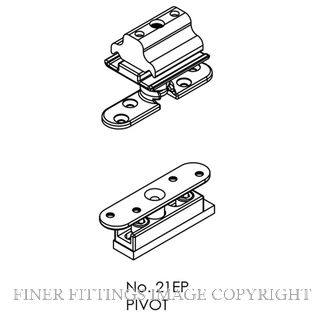

Pivot hardware enables folding exterior shutter to be designed using equal width panels with no cutting down of the panel adjacent to post.
To cover any width opening, any number of folding units can be used.

PLEASE NOTE THE KITS BELOW DO NOT INCLUDE A TOP TRACK THIS IS PURCHASED SEPARATELY. 2000MM OPENING REQUIRES A 2000MM BI100 TOP TRACK

MAX PANEL HEIGHT	2400mm
MAX PANEL WEIGHT	25kg
PANEL THICKNESS	35-50mm
MAX PANEL WIDTH	900mm

STANDARD KITS
ITEM	DESCRIPTION	CONTENTS
BISF25-2PK	2 Panel (No Channel)	Pivot, hanger, door stop, three hinges, all timber screws and instructions.
BISF25-2PKNC	2 Panel Pack	Pivot, hanger, door stop, guide, three hinges, all timber screws and instructions.
BISF25-4PK	4 Panel Pack	Pivot, two hangers, door stop, two guides, nine hinges, all timber screws and instructions.
BISF25-6PK	6 Panel Pack	Pivot, three hangers, door stop, three guides, fifteen hinges, all timber screws and instructions.
BISF25-APK	2 Panel Add-on Pack	Hanger, guide, six hinges, all timber screws and instructions

Downloadable Files

Downloads

brio-shutterfold-25-technical-sheet.pdf

Code	Supplier Part Number	Name	Unit	Function	Product Features	Door Type	Door Thickness	Price	Quantity
BISF25-2PK	SF25-2PK	BRIO SF25-2PK SHUT/FOLD 20 2DR PCK CHNL REQ Unit: Each Function: Folding Shutters Product Features: Top Hung Track Door Type: Timber Exterior Door Thickness: 35mm-50mm	Each	Folding Shutters	Top Hung Track	Timber Exterior	35mm-50mm	$315.77 (inc GST)	Quantity:
BISF25-2PKNC	SF25-2PKNC	BRIO SF25-2PKNC SHUT/FOLD 20 2DR NO CHANNEL Unit: Each Function: Folding Shutters Product Features: Top Hung Track Door Type: Timber Exterior Door Thickness: 35mm-50mm	Each	Folding Shutters	Top Hung Track	Timber Exterior	35mm-50mm	$257.42 (inc GST)	Quantity:
BISF25-4PK	SF25-4PK	BRIO SF25-4PK SHUT/FOLD 20 4DR PCK CHNL REQ Unit: Each Function: Folding Shutters Product Features: Top Hung Track Door Type: Timber Exterior Door Thickness: 35mm-50mm	Each	Folding Shutters	Top Hung Track	Timber Exterior	35mm-50mm	$506.26 (inc GST)	Quantity:
BISF25-6PK	SF25-6PK	BRIO SF25-6PK SHUT/FOLD 20 6DR PCK CHNL REQ Unit: Each Function: Folding Shutters Product Features: Top Hung Track Door Type: Timber Exterior Door Thickness: 35mm-50mm	Each	Folding Shutters	Top Hung Track	Timber Exterior	35mm-50mm	$695.02 (inc GST)	Quantity:
BISF25-APK	SF25-APK	BRIO SF25-APK SHUT/FOLD 20 2DR ADD-ON PACK Unit: Each Function: Folding Shutters Product Features: Top Hung Track Door Type: Timber Exterior Door Thickness: 35mm-50mm	Each	Folding Shutters	Top Hung Track	Timber Exterior	35mm-50mm	$178.48 (inc GST)	Quantity:
