BRIO ENDFOLD 35KG FOLDING TRACK

BRIO ENDFOLD 35KG FOLDING DOOR TRACK

APPLICATION

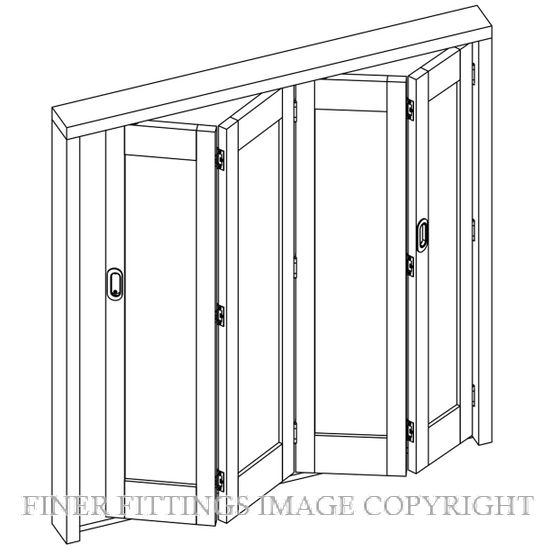

Suitable for residential and light commercial end folding partitions.
Panels can fold to one or both sides of the opening and can be stacked behind a reveal if required.
To cover any width opening, any number of folding units can be used.

A guide system across the floor must be used on units of four panels or more.
Units of up to six panels can be hinged to a post. A unit with an odd number of panels, provides a hinged access door.
A guide system across the floor must be used on units of three panels or more. Floating units consist of four or six panels.
Panels should be constructed to provide secure fitting for the hangers,hinges and guides and can be flush, panelled or glazed.

MAX PANEL HEIGHT	2400mm
MAX PANEL WEIGHT	35kg
MIN PANEL THICKNESS	35mm
MAX PANEL WIDTH	920mm

COMPONENTS REQUIRED
DESCRIPTION	ITEM NUMBER
Top Track	BI100
Hanger	BI57ENP
Door Stop	BI20DS
Hinges	BI282
Track Brackets required 900mm maximum spacing	BI1SS-250
Guide	BI106SSMF
Guide Channel	BI96W

ACCESSORIES
ITEM	PART #
Flush Pull	BI401
Flush Bolt 190mm	BI456

Downloadable Files

Downloads

brio-endfold-35-technical-sheet.pdf

Code	Supplier Part Number	Name	Unit	Function	Product Features	Door Type	Price	Quantity
BIEF35-2PK	EF35-2PK	BRIO EF35-2PK ENDFOLD 20 2 DOOR PACK Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$133.17 (inc GST)	Quantity:
BIEF35-4PK	EF35-4PK	BRIO EF35-4PK ENDFOLD 20 4 DOOR PACK Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$320.91 (inc GST)	Quantity:
BIEF35-6PK	EF35-6PK	BRIO EF35-6PK ENDFOLD 20 6 DOOR PACK Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$477.09 (inc GST)	Quantity:
BIEF35-APK	EF35-APK	BRIO EF35-APK ENDFOLD 20 2 DOOR ADD-ON PACK Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$143.97 (inc GST)	Quantity:
