BRIO PIVOTFOLD 35KG FOLDING PARTITIONS

Supplied With Timber Fixings

BRIO PIVOTFOLD 35KG INTERIOR FOLDING DOOR TRACK

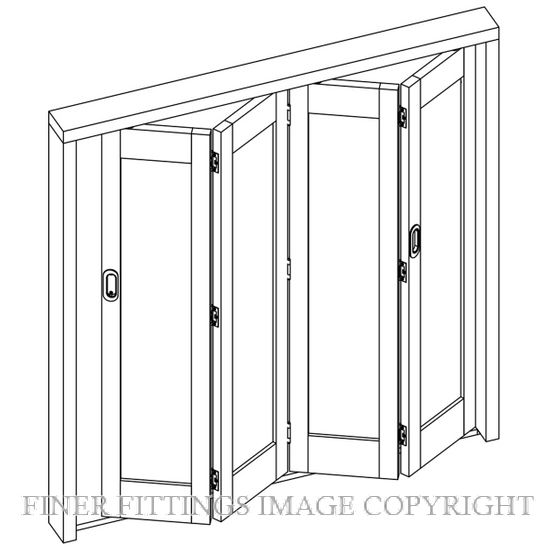

APPLICATION

Suitable for residential and light commercial folding partitions, using equal sized panels.
Panels can fold to one or both sides of the opening.
To cover any width opening, any number of folding units can be used.

Units of up to six panels can be pivoted to each side of the opening.
Units with an odd number of panels provide an access panel.
A guide system across the floor must be used on units of three panels or more. Floating units consist of four or six panels.
Panels should be constructed to provide secure fitting for the pivot sets,hangers,hinges and guides.

To select the correct track

First select the Component packet required then the length of Brio 100 top track required Either Mill Finish or Anodised Aluminium. e.g 2000mm opening requires 2000mm track.

MAX PANEL HEIGHT	2400mm
MAX PANEL WEIGHT	35kg
MIN PANEL THICKNESS	35mm
MAX PANEL WIDTH	920mm

COMPONENT PACKSETS
DESCRIPTION	ITEM NUMBER

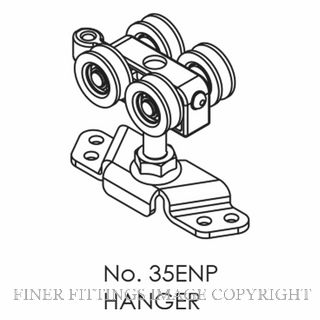

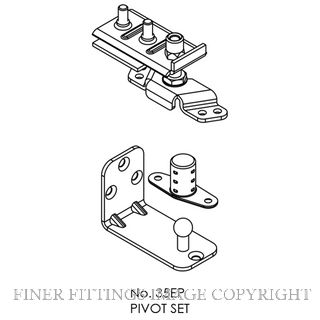

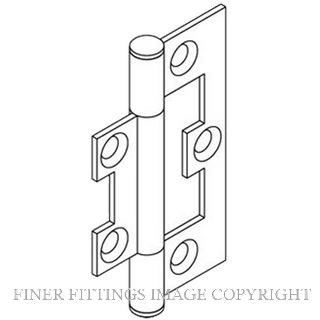

2 Panel Pack – pivot set, hanger ,guide, hinges & stop	BIPF35-2PK
2 Panel Add-on Pack – hangers, guide, hinges	BIPF35-APK

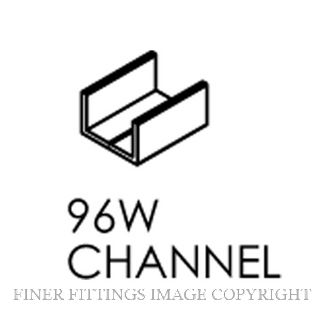

No Channel 2 Panel Pack – pivot set, hangers, hinges & stop	BIPF35-2PKNC
4 Panel Pack – pivot set, hangers, guides, hinges & stop	BI35-4PK
4 Panel Pack – pivot set, hangers, guides, hinges & stop	BIPF35-PK

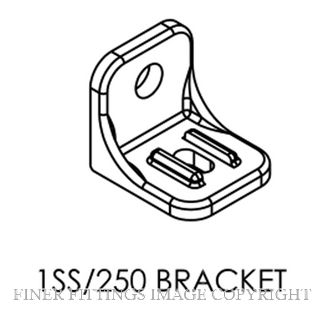

6 Panel Pack – pivot set, hangers, guides, hinges & stop	BI1SS-250

ACCESSORIES
ITEM	PART #

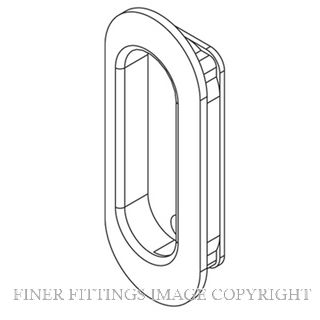

Flush Pull	BI401

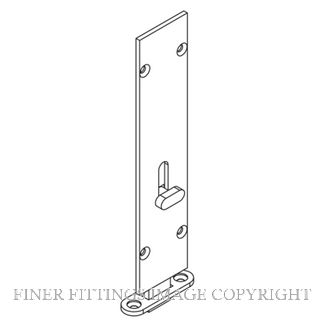

Flush Bolt 190mm	BI456

Downloadable Files

Downloads

brio-pivotfold-35-technical-sheet.pdf

Code	Supplier Part Number	Name	Unit	Function	Product Features	Door Type	Price	Quantity
BIPF35-2PK	PF35-2PK	BRIO PF35-2PK PIVOT/FOLD 20 2DR PK CHNL REQ Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$281.46 (inc GST)	Quantity:
BIPF35-2PKNC	PF35-2PKNC	BRIO PF35-2PKNC PIVOTFOLD 20 2DR NO CHANNEL Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$223.11 (inc GST)	Quantity:
BIPF35-4PK	PF35-4PK	BRIO PF35-4PK PIVOT/FOLD 20 4DR PK CHNL REQ Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$437.61 (inc GST)	Quantity:
BIPF35-6PK	PF35-6PK	BRIO PF35-6PK PIVOT/FOLD 20 6DR PK CHNL REQ Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$592.06 (inc GST)	Quantity:
BIPF35-APK	PF35-APK	BRIO PF35-APK PIVOT/FOLD 20 2DR ADD-ON PACK Unit: Each Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior	Each	Hallway-Room Dividing	Top Hung Track	Timber Interior	$143.97 (inc GST)	Quantity:
