ORBLOCK LOCK BOLT

ORBLOCK LOCK BOLT
  • ORBLOCK LOCK BOLT
  • ORBLOCK LOCK BOLT
 Fire.pngSupplied With Timber & Aluminium Fixings

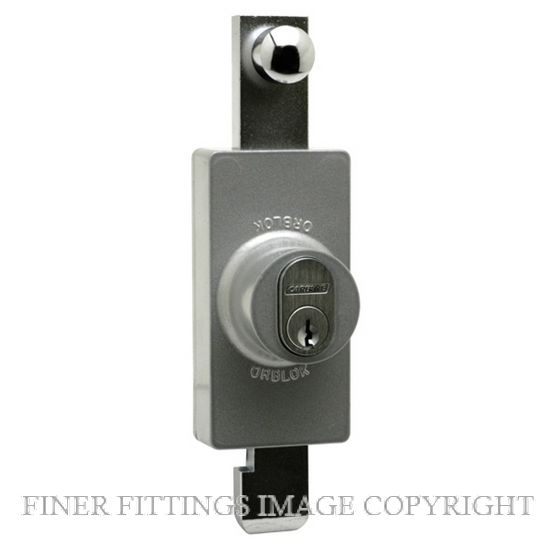

ORBLOK LOCKABLE BOLTS

Carbine Orblok bolts have long been the choice of security specialists when it comes to locking up shop doors in commercial applications. They can be used for either aluminium or timber doors and have a rekeyable cylinder allowing for a range of rekeying options if required. Features include:

-- Unique square locking bolt offers difficulty for would be intruders
-- Has a bolt projection of 33mm (with the standard size bolt) from the body of the lock in the locked position
-- Bolt can be locked into an open position
-- Extended bolt models available if needed
-- Available in concealed fixing
-- Has an easy to grip knob allowing easy lifting of the bolt to either open or close
Note: All models now supplied with 4 fixing bolts 62-9308997

Finish - Silver

Manufactured of - Zinc Diecast

Each bolt comes with 4 shear of mounting bolts addition bolts are available to be purchased separately

3mm Packer plates are also available see below

If you require assistance with your selection please contact us either by email or phone.

ITEM NUMBERBOLT LENGTH OPENBOLT THROW
LK62-7107504175mm33mm
LK62-7109504225mm33mm
LK62-7112504300mm33mm
LK62-7118504450mm33mm
LK62-7124504600mm33mm



Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Finish Overall Length Fixing Centres Width Bolt Throw Material Thickness Price Quantity

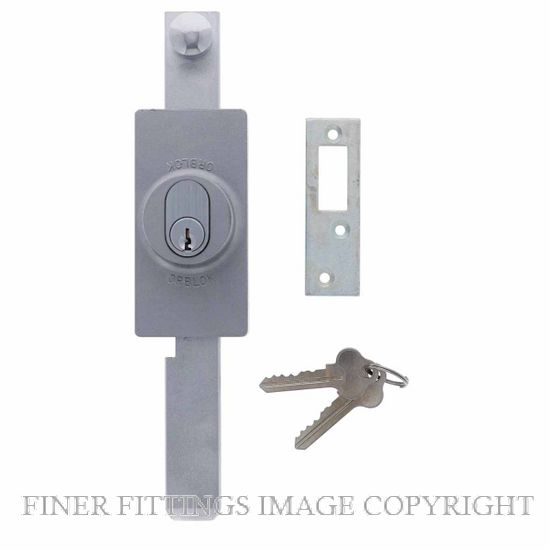

LK62-7107504 62-7107504 CARBINE ORBLOK 62-7107504 LOCKABLE BOLT 175MM SILVER
  • Unit:
    Each
  • Finish:
    Silver
  • Overall Length:
    175mm
  • Fixing Centres:
    85.5mm
  • Width:
    51mm
  • Bolt Throw:
    33mm
  • Material Thickness:
    -
 Each Silver 175mm 85.5mm 51mm 33mm -
$136.96 (inc GST)

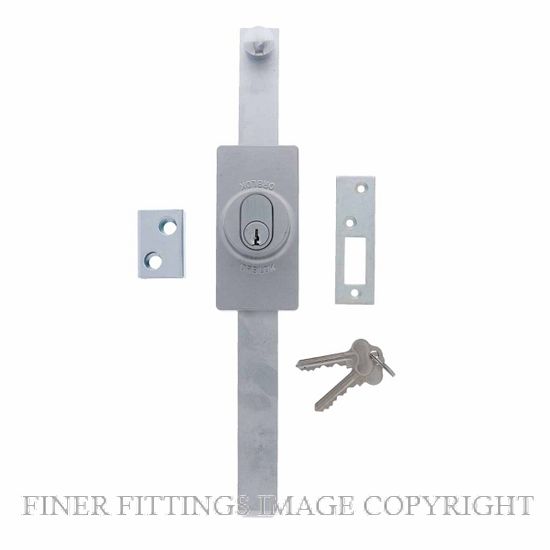

LK62-7109504 62-7109504 CARBINE ORBLOK 62-7109504 LOCKABLE BOLT 225MM SILVER
  • Unit:
    Each
  • Finish:
    Silver
  • Overall Length:
    225mm
  • Fixing Centres:
    85.5mm
  • Width:
    51mm
  • Bolt Throw:
    33mm
  • Material Thickness:
    -
 Each Silver 225mm 85.5mm 51mm 33mm -
$137.47 (inc GST)
LK62-7112504 62-7112504 CARBINE ORBLOK 62-7112504 LOCKABLE BOLT 300MM SILVER
  • Unit:
    Each
  • Finish:
    Silver
  • Overall Length:
    300mm
  • Fixing Centres:
    85.5mm
  • Width:
    51mm
  • Bolt Throw:
    33mm
  • Material Thickness:
    -
 Each Silver 300mm 85.5mm 51mm 33mm -
$142.63 (inc GST)

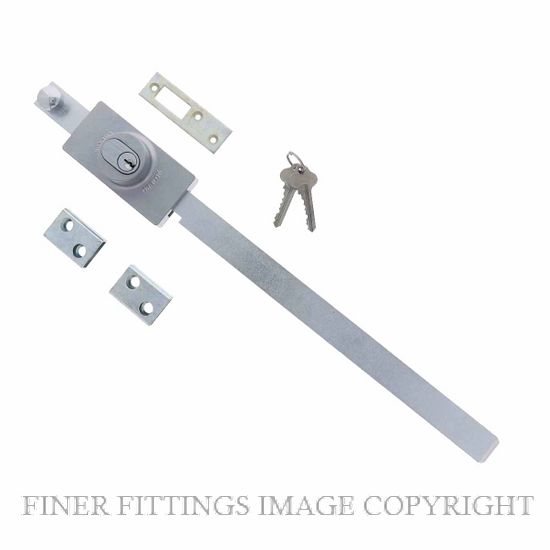

LK62-7118504 62-7118504 CARBINE ORBLOK 62-7118504 LOCKABLE BOLT 450MM SILVER
  • Unit:
    Each
  • Finish:
    Silver
  • Overall Length:
    450mm
  • Fixing Centres:
    85.5mm
  • Width:
    51mm
  • Bolt Throw:
    33mm
  • Material Thickness:
    -
 Each Silver 450mm 85.5mm 51mm 33mm -
$145.01 (inc GST)

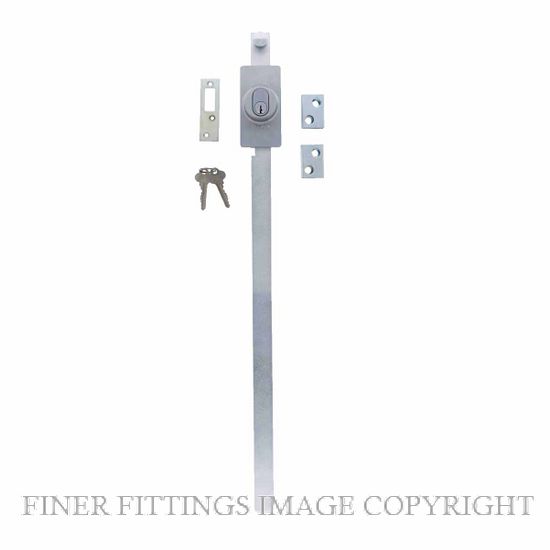

LK62-7124504 62-7124504 CARBINE ORBLOK 62-7124504 LOCKABLE BOLT 600MM SILVER
  • Unit:
    Each
  • Finish:
    Silver
  • Overall Length:
    600mm
  • Fixing Centres:
    85.5mm
  • Width:
    51mm
  • Bolt Throw:
    33mm
  • Material Thickness:
    -
 Each Silver 600mm 85.5mm 51mm 33mm -
$154.24 (inc GST)

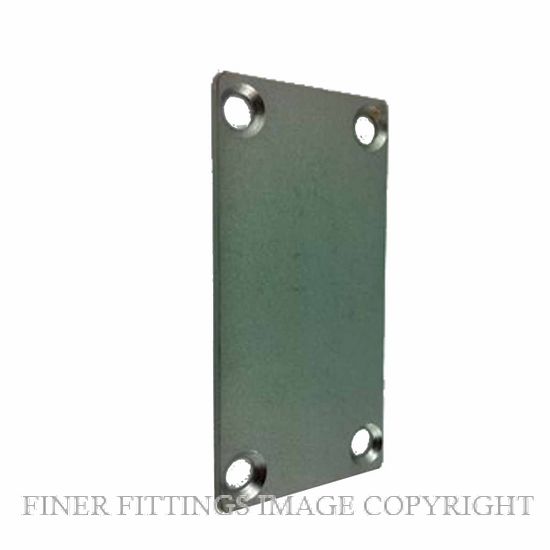

LK62-9314997 62-9314997 CARBINE ORBLOK 62-9314997 LOCKABLE BOLT PACKING PLATE SILVER
  • Unit:
    Each
  • Finish:
    Silver
  • Overall Length:
    -
  • Fixing Centres:
    -
  • Width:
    -
  • Bolt Throw:
    -
  • Material Thickness:
    3mm
 Each Silver - - - - 3mm
$25.92 (inc GST)

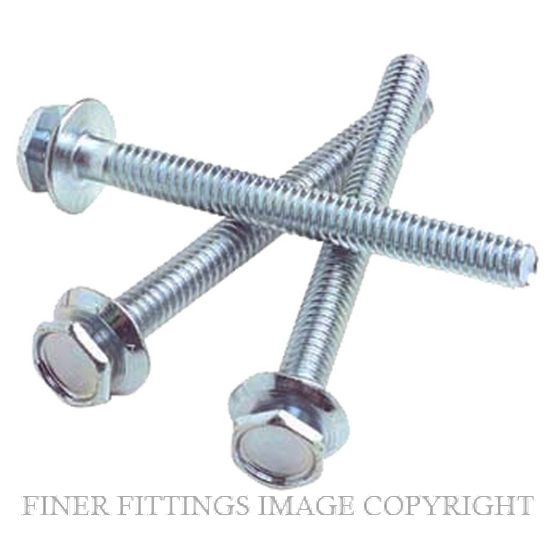

LK62-9308997 62-9308997 CARBINE ORBLOK LK62-9308997 BREAK OF BOLT ZINC PLATE
  • Unit:
    Each
  • Finish:
    Zinc Plate
  • Overall Length:
    -
  • Fixing Centres:
    -
  • Width:
    -
  • Bolt Throw:
    -
  • Material Thickness:
    -
 Each Zinc Plate - - - - -
$18.98 (inc GST)
