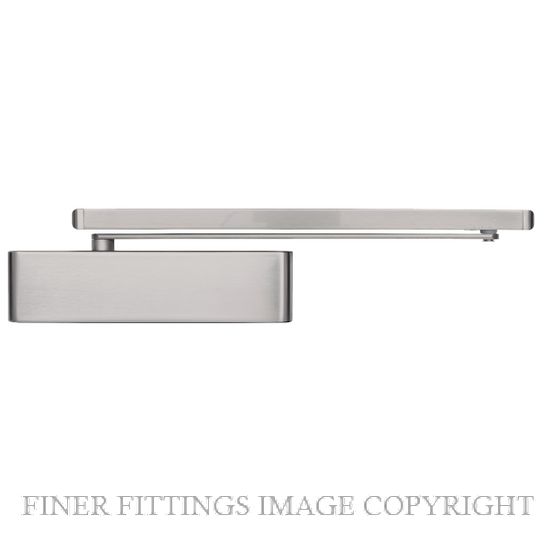

 BRITON 2720 DELAT ACTION CAM ACTION DOOR CLOSERS  (SATIN STAINLESS)

The Briton 2700 Series incorporates cam action technology to reduce the resistance encountered when opening fire or smoke barrier doors.
The reduced force required to open fire doors makes entering and exiting buildings much easier for all users – including the elderly, those with physical disabilities and small children.
In contrast to a conventional rack and pinion door closer, the linear cam action principle is extremely efficient.

The initial opening force decreases as the door opens, and the closer retains power and control to close the door afterwards.
The Briton 2700 Series offers easy opening and reliable closing, while meeting accessibility standards.

PRODUCT FEATRUES

Available in 2 mounting options

Pull side mount -BT2720BD T SS
Push side mount - BT2721BD T SS

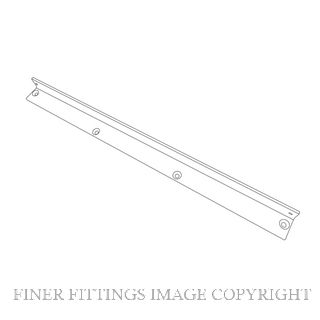

Note the push side mount includes to angle mounting bracket as standard
Extruded aluminium body with cam action technology
• High quality hydraulic fluid with built-in temperature compensation (will operate effectively between -15 to +40 degrees Celcius)
• Separate closing speed and latch action adjustment

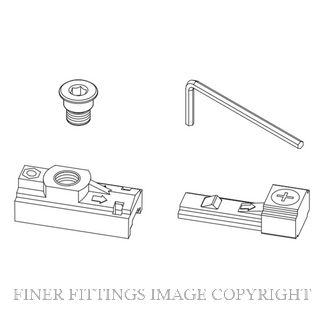

• Optional mechanical hold-open available:
80° - 120° angle
• Electroplated stainless steel finish
• 10 year warranty

Fire.pngSupplied With Fixings

Strength - 1 - 5 Adjustable
Backcheck - Standard
Delay Action - Standard
Door Size - 850mm to 1250mm
Door Weight - 40-100kg

Available Finish - Satin Stainless

FOR RELATED PRODUCTS REFER BOTTOM OF PAGE

CLICK TO VIEW ALL STAINLESS STEEL PRODUCTS

Downloadable Files

Downloads

Code Supplier Part Number Image Name Unit Application Function Product Features Finish Product Options Strength Fire Rated Price Quantity
BT2720BD T SS B2720BDT-SS BRITON BT2720BD T SS CAM ACTION DA CLOSER PULL SIDE STAINLESS
  • Unit:
    Each
  • Application:
    Internal Hinged Door,External Hinged Door
  • Function:
    Surface Mount Track Slide Arm
  • Product Features:
    Cam Action Pull Side Mount
  • Finish:
    Satin Stainless 304
  • Product Options:
    Delay Action
  • Strength:
    En5 Max Door Width 1200mm
  • Fire Rated:
    Fire Rated
 Each Internal Hinged Door,External Hinged Door Surface Mount Track Slide Arm Cam Action Pull Side Mount Satin Stainless 304 Delay Action En5 Max Door Width 1200mm Fire Rated
Retail: $735.98 (inc GST)
Special: $625.58 (inc GST)
BT2721BD T SS B2721BDT-SS BRITON BT2721BD T SS CAM ACTION DA CLOSER PUSH SIDE STAINLESS
  • Unit:
    Each
  • Application:
    Internal Hinged Door,External Hinged Door
  • Function:
    Surface Mount Track Slide Arm
  • Product Features:
    Cam Action Push Side Mount
  • Finish:
    Satin Stainless 304
  • Product Options:
    Delay Action
  • Strength:
    En5 Max Door Width 1200mm
  • Fire Rated:
    Fire Rated
 Each Internal Hinged Door,External Hinged Door Surface Mount Track Slide Arm Cam Action Push Side Mount Satin Stainless 304 Delay Action En5 Max Door Width 1200mm Fire Rated
Retail: $815.38 (inc GST)
Special: $693.07 (inc GST)
