BRIO BIFOLD 16 INTERIOR FOLDING TRACK

BRIO BIFOLD 16KG INTERIOR FOLDING DOOR TRACK

APPLICATION

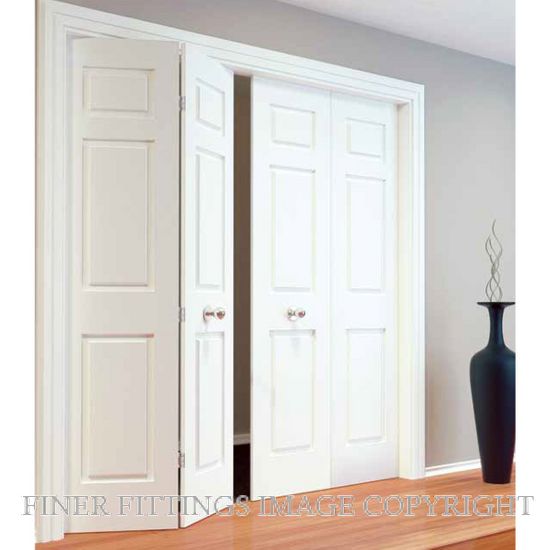

Suitable For Residential And Light Commercial Wardrobe And Cupboard Folding Doors.

Ideal For Use On Openings With Non-Rebated Jambs As Only Simple Framing At The Head Is Required To Take The Top Track.

The Pivot Arrangement Allows The Panels To Fold Open To About 100 Degrees,

Allowing Unhindered Access To Over 90% Of The Opening. No Bottom Guide Channel Is Necessary.

DOOR SPECIFICATIONS

`Bifold 16’ Can Be Used For Any Width Opening And For Any Number Of Panels, In Multiples Of Two Panel Units, By Pivoting The Third Unit Of Leaves, Etc.,

Within The Opening. Top And Bottom Rails Should Be Of Sufficient Size To Ensure Solid And Secure Fitting For The Guide And Pivots.

Where Solid Panels Are Used, They Should Be Restricted To 450Mm Wide. Panels Wider Than 450Mm Should Be Of Light Construction And Provision Made For Securing The Door Knob.

Panels Should Be Made Of Equal Width, Allowing 1Mm Clearance Between Panels And 6-7Mm Clearance At The Pivot Point And Closing Stile.

STANDARD SETS

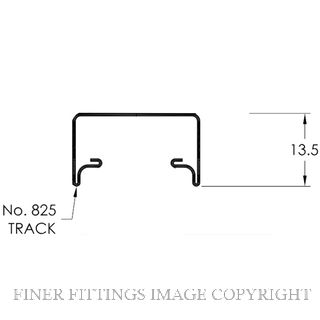

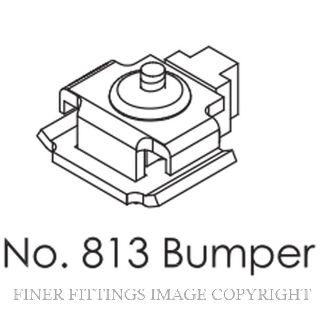

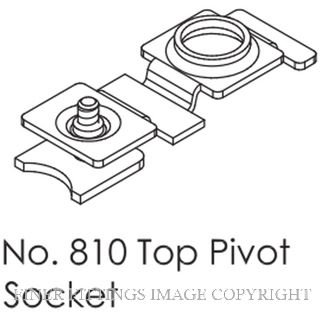

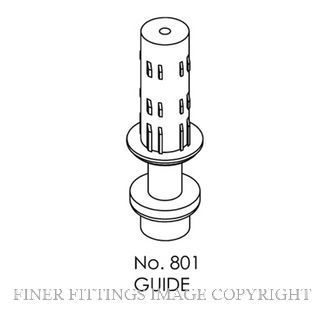

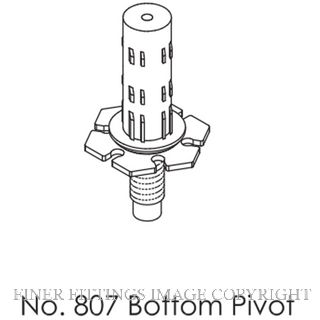

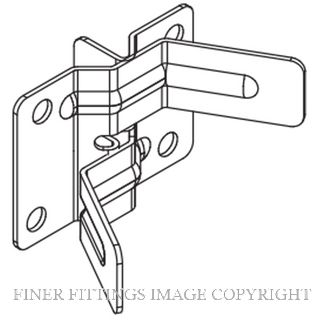

Sets For Two Panels Comprise Track, Top Pivot Socket, Bumper, Top And Bottom Pivots, Jamb Bracket, Top Guide, Three 822 Hinges, Spanner, All Screws And Fitting Instructions.

Sets For Four Panels Comprise Twice The Amount Of The Above Hardware, But Only One Spanner And Fitting Instruction Plus Two Aligners

MAX PANEL HEIGHT 19-35MM THICK	2040mm
MAX PANEL HEIGHT 29-35MM THICK	2400mm
MAX PANEL WEIGHT	16kg
MIN PANEL THICKNESS	35mm
MAX PANEL WIDTH	900mm

COMPONENT KITSETS
ITEM NUMBER	OPENING WIDTH
BIBF16-09-2	Up to 915mm for two panels
BIBF16-12-2	916mm to 1250mm for two panels
BIBF16-18-4	Up to 1830mm for two panels pivoted from each side
BIBF16-25-4	1830mm to 2500mm for two panels pivoted from each side

ACCESSORIES
ITEM	PART #

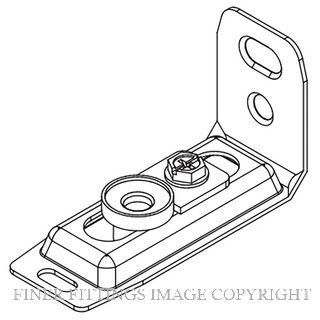

Floor bracket to be used if no jamb available	BI804
Flush Bolt 190mm	BI456

Downloadable Files

Downloads

Code	Supplier Part Number	Name	Unit	Function	Door Type	Door Thickness	Price	Quantity
BIBF16-09-2	BF16-09/2	BRIO BF16-09/2 BI-FOLD SET Unit: Len Function: Wardrobe Doors Door Type: Timber Interior Door Thickness: 35mm Minimum	Len	Wardrobe Doors	Timber Interior	35mm Minimum	$95.07 (inc GST)	Quantity:
BIBF16-12-2	BF16-12/2	BRIO BF16-12/2 BI-FOLD SET Unit: Len Function: Wardrobe Doors Door Type: Timber Interior Door Thickness: 35mm Minimum	Len	Wardrobe Doors	Timber Interior	35mm Minimum	$101.08 (inc GST)	Quantity:
BIBF16-18-4	BF16-18/4	BRIO BF16-18/4 BI-FOLD SET Unit: Len Function: Wardrobe Doors Door Type: Timber Interior Door Thickness: 35mm Minimum	Len	Wardrobe Doors	Timber Interior	35mm Minimum	$193.94 (inc GST)	Quantity:
BIBF16-25-4	BF16-25/4	BRIO BF16-25/4 BI-FOLD SET Unit: Len Function: Wardrobe Doors Door Type: Timber Interior Door Thickness: 35mm Minimum	Len	Wardrobe Doors	Timber Interior	35mm Minimum	$205.94 (inc GST)	Quantity:
