BRIO ZERO CLEARANCE 350KG

BRIO ZERO CLEARANCE 350KG STRAIGHT SLIDING DOOR TRACK

APPLICATION

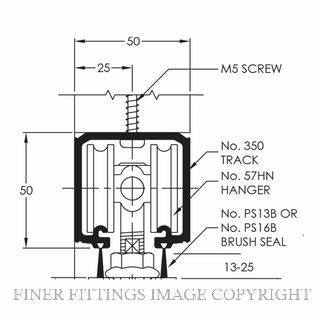

Designed to achieve minimal clearances of just 3mm between the top edge of the door and underside of the track concealing all moving parts.

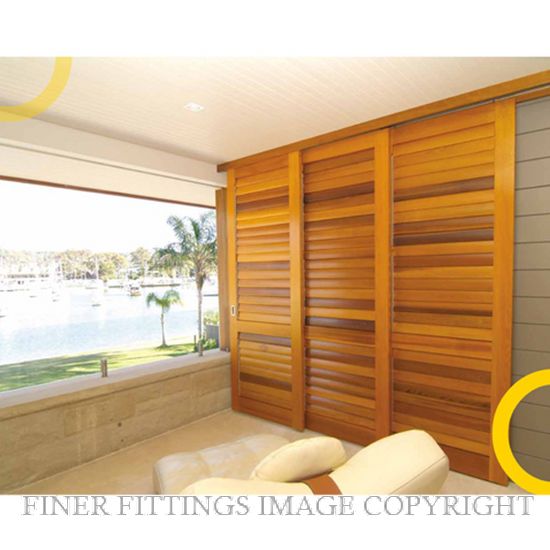

Ideally suited to floor to ceiling straight sliding timber doors in both residential and commercial applications.

Zero Clearance 350 hangers are cast 316 stainless steel with stainless steel bearings and suitable for both interior and exterior and exterior applications

If you require assistance with your selection, please contact us either by email or phone.

MAX PANEL HEIGHT	3000mm
MAX PANEL WEIGHT	350kg
PANEL THICKNESS	35mm

BI ZC350 950 THIS KITSET IS FOR DOORS WITH A MAXIMUM WEIGHT OF 350KG AND UP TO 950MM WIDE
ITEM	PART #	QUANTITY
BRIO 250 2000MM TOP TRACK	BI250-A20	1

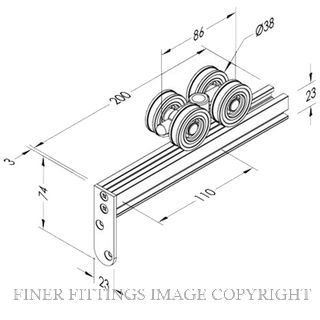

BRIO HANGER	BI61HN	2
BRIO 180DS DOOR STOP	BI180DS	2
BRIO 94PPA BOTTOM TRACK 2000	BI94PPA-20	1
BRIO DOOR GUIDE	BI106E-94	1

BI ZC350 1450 THIS KITSET IS FOR DOORS WITH A MAXIMUM WEIGHT OF 350KG AND 950 TO 1450MM WIDE
ITEM	PART #	QUANTITY
BRIO 250 3000MM TOP TRACK	BI250-A30	1
BRIO HANGER	BI61HN	2
BRIO 180DS DOOR STOP	BI180DS	2
BRIO 94PPA BOTTOM TRACK 2000	BI94PPA-20	1
BRIO DOOR GUIDE	BI106E-94	1

BI ZC350 1950 THIS KITSET IS FOR DOORS WITH A MAXIMUM WEIGHT OF 350KG AND 1450 TO 1950MM WIDE
ITEM	PART #	QUANTITY
BRIO 250 4000MM TOP TRACK	BI250-A40	1
BRIO HANGER	BI61HN	2
BRIO 180DS DOOR STOP	BI180DS	2
BRIO 94PPA BOTTOM TRACK 2000	BI94PPA-20	1
BRIO DOOR GUIDE	BI106E-94	1

BI ZC350 2950 THIS KITSET IS FOR DOORS WITH A MAXIMUM WEIGHT OF 350KG AND 1950 TO 2950MM WIDE
ITEM	PART #	QUANTITY
BRIO 250 6000MM TOP TRACK	BI250-A60	1
BRIO HANGER	BI61HN	2
BRIO 180DS DOOR STOP	BI180DS	2
BRIO 94PPA BOTTOM TRACK 3000	BI94PPA-30	1
BRIO DOOR GUIDE	BI106E-94	1

Downloadable Files

Downloads

Code	Name	Unit	Function	Product Features	Door Type	Product Options	Door Thickness	Price	Quantity
BI ZC350 1450	BRIO ZERO CLEARANCE TRACK 180 TO 350KG - 950 TO 1450MM DOOR WIDTH Unit: Kitset Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior Product Options: Zero Clearance Track Door Thickness: 35mm	Kitset	Hallway-Room Dividing	Top Hung Track	Timber Interior,Timber Exterior	Zero Clearance Track	35mm	$835.54 (inc GST)	Quantity:
BI ZC350 1950	BRIO ZERO CLEARANCE TRACK 180 TO 350KG - 1450 TO 1950MM DOOR WIDTH Unit: Kitset Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior Product Options: Zero Clearance Track Door Thickness: 35mm	Kitset	Hallway-Room Dividing	Top Hung Track	Timber Interior,Timber Exterior	Zero Clearance Track	35mm	$921.26 (inc GST)	Quantity:
BI ZC350 2950	BRIO ZERO CLEARANCE TRACK 180 TO 350KG - 1950 TO 2950MM DOOR WIDTH Unit: Kitset Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior Product Options: Zero Clearance Track Door Thickness: 35mm	Kitset	Hallway-Room Dividing	Top Hung Track	Timber Interior,Timber Exterior	Zero Clearance Track	35mm	$1,134.21 (inc GST)	Quantity:
BI ZC350 950	BRIO ZERO CLEARANCE TRACK 180 TO 350KG - UP TO 950MM DOOR WIDTH Unit: Kitset Function: Hallway-Room Dividing Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior Product Options: Zero Clearance Track Door Thickness: 35mm	Kitset	Hallway-Room Dividing	Top Hung Track	Timber Interior,Timber Exterior	Zero Clearance Track	35mm	$748.13 (inc GST)	Quantity:
