BRIO SINGLE RUN 180KG

BRIO SINGLE RUN 180KG STRAIGHT SLIDING DOOR TRACK

APPLICATION

WIDELY USED IN LIGHTER COMMERCIAL AND INDUSTRIAL APPLICATIONS.

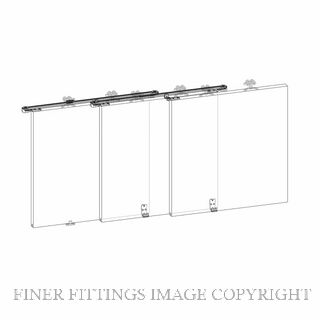

TO COVER ANY WIDTH OF OPENING, ANY NUMBER OF DOORS CAN BE USED.

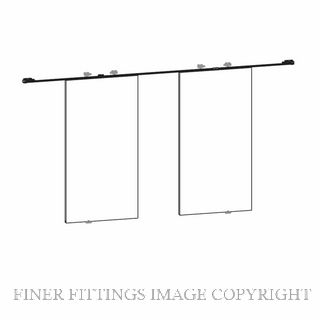

TO ACCOMMODATE DIFFERENT BUILDING DESIGNS, DOORS CAN SLIDE TO ONE OR BOTH SIDES.

HINGED DOOR FOR EASY ACCESS MAY BE INCORPORATED INTO A SLIDING DOOR.

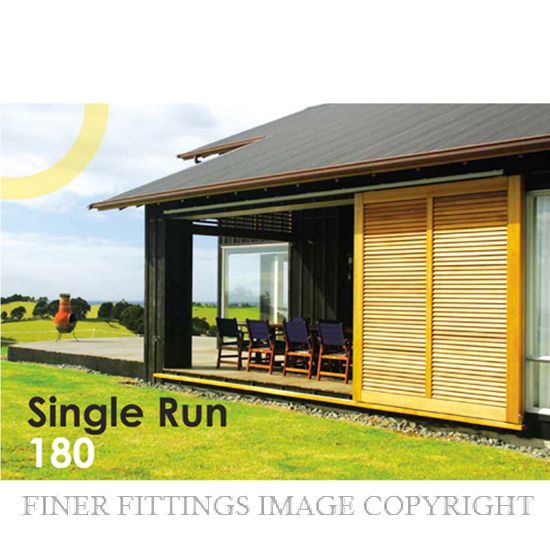

WHERE DOORS ARE FITTED EXTERNALLY, A CANOPY IS RECOMMENDED.

MAX PANEL HEIGHT	3500mm
MAX PANEL WEIGHT	180kg
MINIMUM PANEL THICKNESS	35-48mm

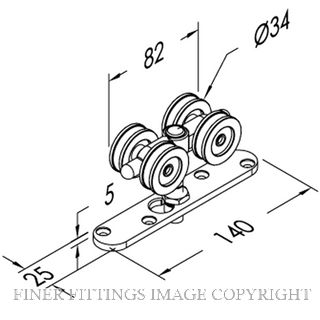

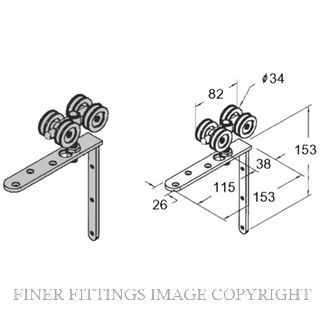

THESE KITS ALLOW FOR THE PLATE FITTING HANGER. ALL COMPONENTS CAN BE ORDERED SEPERATELY.

BI SR180 950 THIS KITSET IS FOR DOORS UP TO 950MM ITEMS INCLUDED IN KITSET
ITEM	PART #	QUANTITY
BRIO 2000MM TOP TRACK	BI180-20	1

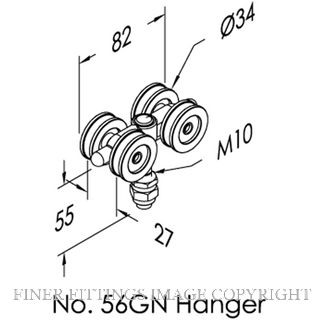

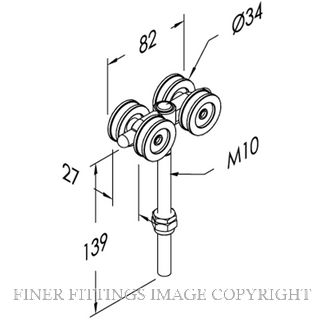

BRIO HANGER	BI57GN	2

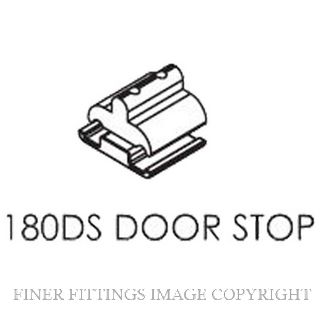

BRIO TRACK STOP	BI180DS	2

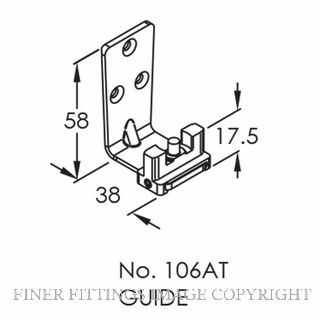

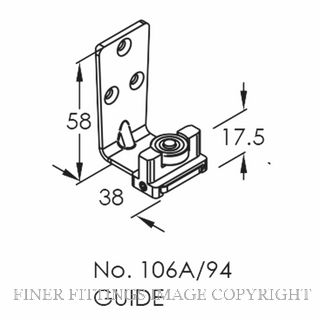

BRIO DOOR GUIDE	BI106E-94	1

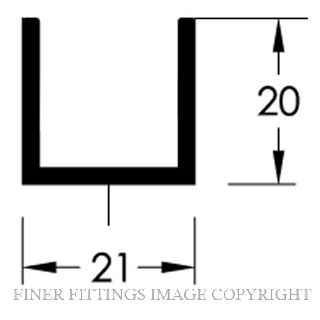

BRIO 2000MM BOTTOM CHANNEL	BI94PPA-A20	1

BI SR180 1450 THIS KITSET IS FOR DOORS 950-1450MM ITEMS INCLUDED IN KITSET
ITEM	PART #	QUANTITY
BRIO 3000MM TOP TRACK	BI180-30	1
BRIO HANGER	BI57GN	2
BRIO DOOR STOP	BI180DS	2
BRIO DOOR GUIDE	BI106E-94	1
BRIO 2000MM BOTTOM CHANNEL	BI94PPA-A20	1

BI SR180 1950 THIS KITSET IS FOR DOORS 1450-1950MM ITEMS INCLUDED IN KITSET
ITEM	PART #	QUANTITY
BRIO 4000MM TOP TRACK	BI180-40	1
BRIO HANGER	BI57GN	2
BRIO DOOR STOP	BI180DS	2
BRIO DOOR GUIDE	BI106E-94	1
BRIO 2000MM BOTTOM CHANNEL	BI94PPA-20	1

BI SR180 2950 THIS KITSET IS FOR DOORS 1950-2950MM ITEMS INCLUDED IN KITSET
ITEM	PART #	QUANTITY
BRIO 6000MM TOP TRACK	BI180-60	1
BRIO HANGER	BI57GN	2
BRIO DOOR STOP	BI180DS	2
BRIO DOOR GUIDE	BI106E-94	1
BRIO 3000MM BOTTOM CHANNEL	BI94PPA-30	1

Downloadable Files

Downloads

brio-single-run-180-technical sheet.pdf

Code	Name	Unit	Function	Product Features	Door Type	Product Options	Door Thickness	Price	Quantity
BI SR180 1450	BRIO SINGLE RUN 120KG TO 180KG - 950 TO 1450MM DOOR WIDTH Unit: Kitset Function: Sliding Exterior Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior,Aluminium Exterior Product Options: Single Run track Door Thickness: 35-48mm	Kitset	Sliding Exterior	Top Hung Track	Timber Interior,Timber Exterior,Aluminium Exterior	Single Run track	35-48mm	Retail: $558.48 (inc GST) Special: $474.71 (inc GST)	Quantity:
BI SR180 1950	BRIO SINGLE RUN 120KG TO 180KG - 1450 TO 1950MM DOOR WIDTH Unit: Kitset Function: Sliding Exterior Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior,Aluminium Exterior Product Options: Single Run track Door Thickness: 35-48mm	Kitset	Sliding Exterior	Top Hung Track	Timber Interior,Timber Exterior,Aluminium Exterior	Single Run track	35-48mm	Retail: $612.99 (inc GST) Special: $521.04 (inc GST)	Quantity:
BI SR180 2950	BRIO SINGLE RUN 120KG TO 180KG - 1950 TO 2950MM DOOR WIDTH Unit: Kitset Function: Sliding Exterior Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior,Aluminium Exterior Product Options: Single Run track Door Thickness: 35-48mm	Kitset	Sliding Exterior	Top Hung Track	Timber Interior,Timber Exterior,Aluminium Exterior	Single Run track	35-48mm	Retail: $760.31 (inc GST) Special: $646.26 (inc GST)	Quantity:
BI SR180 950	BRIO SINGLE RUN 120KG TO 180KG - UP TO 950MM DOOR WIDTH Unit: Kitset Function: Sliding Exterior Product Features: Top Hung Track Door Type: Timber Interior,Timber Exterior,Aluminium Exterior Product Options: Single Run track Door Thickness: 35-48mm	Kitset	Sliding Exterior	Top Hung Track	Timber Interior,Timber Exterior,Aluminium Exterior	Single Run track	35-48mm	Retail: $513.98 (inc GST) Special: $436.88 (inc GST)	Quantity:
